50m Hdmi Wireless HDMI Extender

  • HDMI1.4 wireless extender kit - 50 m

  • HDMI Standard: HDMI 1.3, HDCP 1.4

  • HDMI loop output at the transmitter

  • Output Resolution: 720 / 1080P @ 50 / 60Hz

  • HDMI Max Transmission Rate: 6.75Gbps

  • description

  •   50m Hdmi Wireless HDMI Extender

  • Wireless HDMI signal transmission - 50m wireless by radio (WHDMI)
    Full HD 1080p up to 50m
    HDCP compatible

    Wireless HDMI extender set for uncompressed Full HD 1080p video transmission by radio.
    Wireless HDMI transmission via radio with this wireless HDMI extension offers the advantage that HDMI signals from a PC, a cable set-top box, a satellite receiver, a Blu-Ray or DVD player, a game console or any other HDMI device can be transmitted wirelessly in Full HD 1080p to your home theater system.

    Long Distance Wireless HDMI Transmission
    The HDMI-via wireless extension set transmits HD video and audio signals in full 1080p resolution - over distances up to 50m - to your HDTV or projector without the need to lay cables.

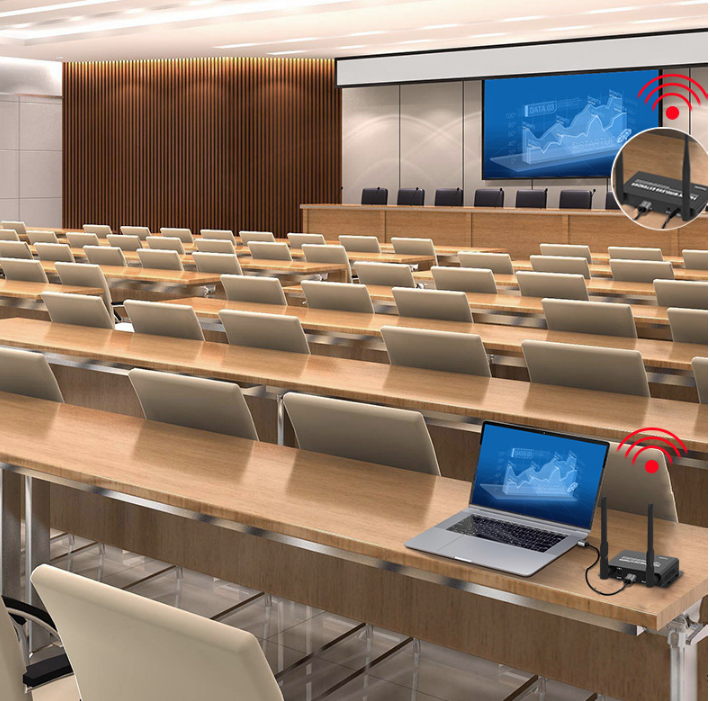

    This Wireless HDMI Extender transmits HDMI A/V signals even through walls and across (multiple) floors, so you can install the sinks (HDMI screens, HDTV, projectors, ...) freely and fullyl regardless of the location of the HDMI source.

    Features of the 50m Wirelles HDMI-over-IP Extender at a glance
    Transmits the HDMI signal wirelessly from an HDMI source to a display device (display/screen, HDTV, projector/projector, etc.) up to 50m away
    Full HD (1080p @60Hz) transmission and fully compatible with HDMI and HDCP

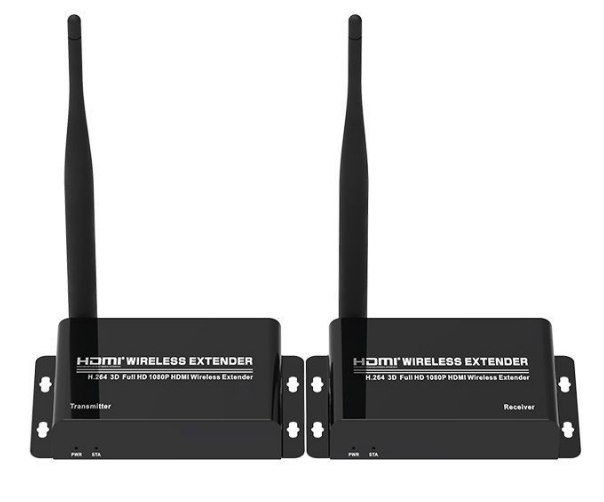

    Wireless HDMI signal transmission: No cable between transmitter (TX) and receiver (RX)
    Low susceptibility to interference thanks to transmission in the 5.8GHz band
    Robust metal housing
    HDMI loop output on transmitter
    Easy plug-n-play installation

    When extending HDMI wirelessly through walls and from one floor to another, please note that walls and ceilings may reduce the maximum range of 50 meters.





      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
