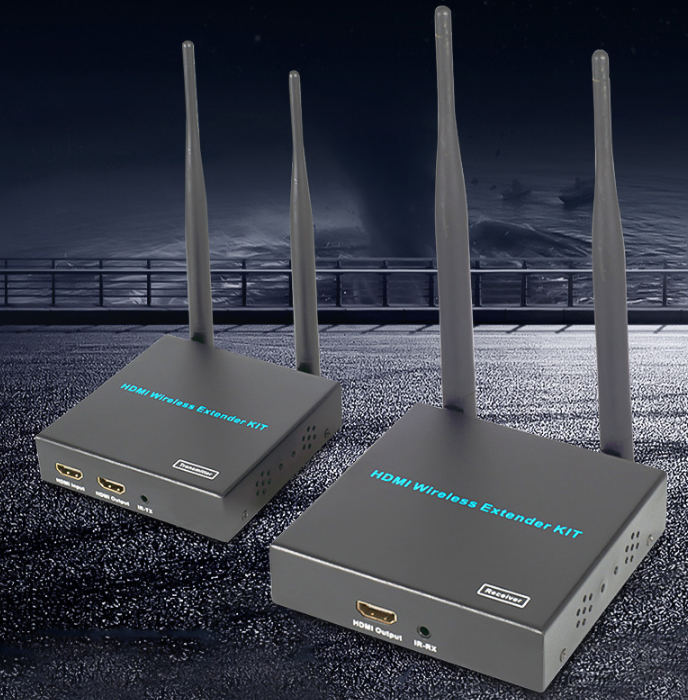

300m HDMI1.3 wireless extender with IR

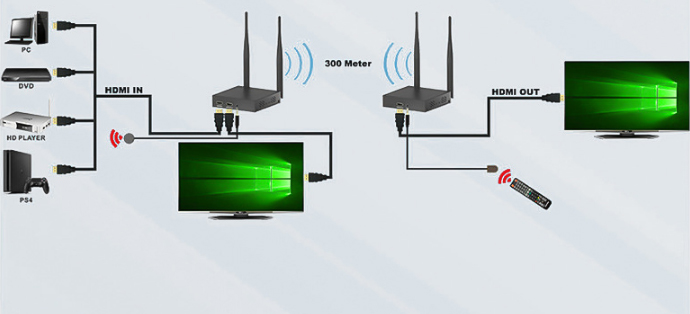

This extender allows you to send a 1080p FullHD signal wirelessly as a point-to-point distribution system, i.e. from a transmitter to a single receiver (1:1 solution) or as a point-to-multipoint system, i.e. from a transmitter to a maximum of two receivers (1:2 solution).
STRENGTHS
- Extra receiver for - Extends an HDMI signal in Full HD 1080p in Wireless 2.4 GHz+5.8G twin frequency up to 300 meters in free field. - Easier and tidier installations, no cables between transmitter and receiver. - Remote control of the source by supporting IR signals. - Immune to interference from other 2.4 GHz+5.8G twin frequency wireless devices - Possibility of wall installation. -Plug & Play installation, no configuration required.
APPLICATIONS
This extender is the ideal solution for home use and show rooms, security applications, conference rooms, schools and training environments.
TECHNICAL DATA

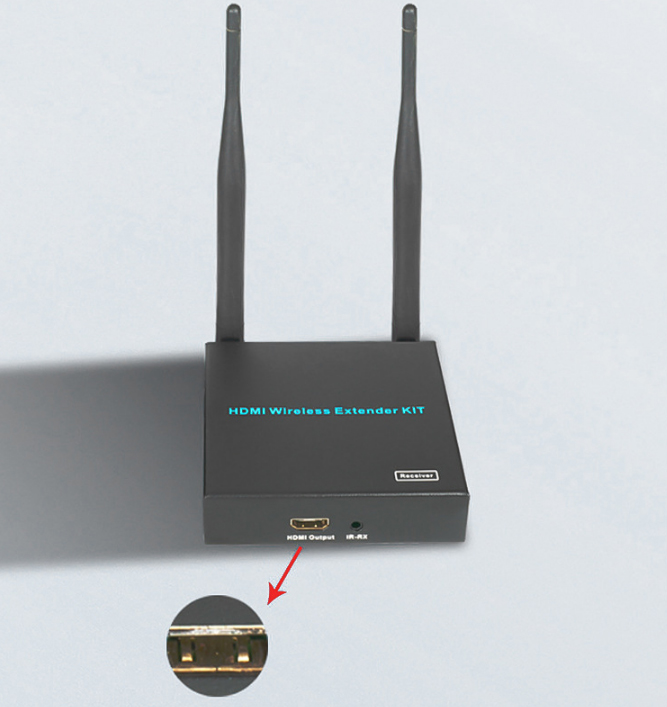

Description Additional receiver
Number of receiver inputs 2
Type of connector Wireless / Jack 3.5 mm female
Max input cable length - m 200 5 GHz wireless with IEEE802.11 a/n standard
. (In open field without obstacles)
Number of receiver outputs 1
Connector Type HDMI type A female
Bandwidth / Rate - Mbps 802.11n, OFDM modulation: up to 300
HDMI version 1.3
HDCP 1.2 version
3D Compatible No
Support HDMI CEC function No
Frequency range - 2.4 GHz/5.8GHz
Support Deep Color Yes, up to 24 bit total / 8 bit per channel
Max Supported Video Resolution 1080p@60Hz
Supported Video Resolutions 480i/p@50/60Hz, 576i/p@50/60Hz, 720p@50/60Hz,
. 1080i/p@50/60Hz
Audio encodings supported Stereo L/R
IR Signal Support Yes
Frequency range of IR signals - kHz 20 ÷ 60
Supported connection types Point-to-Point (1:1 solution)
. Point-to-Multipoint (1:2 solution)
Power supply - VDC / A 5 / 2
Consumption - W <5.5
Material Type Metallic
Dimensions (W x H x D) / Weight - mm / g 196 x 31 x 137.5 / 531
Temperature / humidity range - °C / % -30 ÷ 70 / 5 ÷ 95 (without condensation)
Storage Temperature / Humidity - °C / % -40 to 80 / 5 to 95 (non-condensing)
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
