48-128 channel telephone optical transceiver

  • supports caller ID and reverse polarity billing function

  • Support the mutual release function of each site

  • The voice port supports O-port and S-port interface

  • S-port is connected with the user's telephone

  • description

  •      Centralized management 4U chassis telephone over fiber

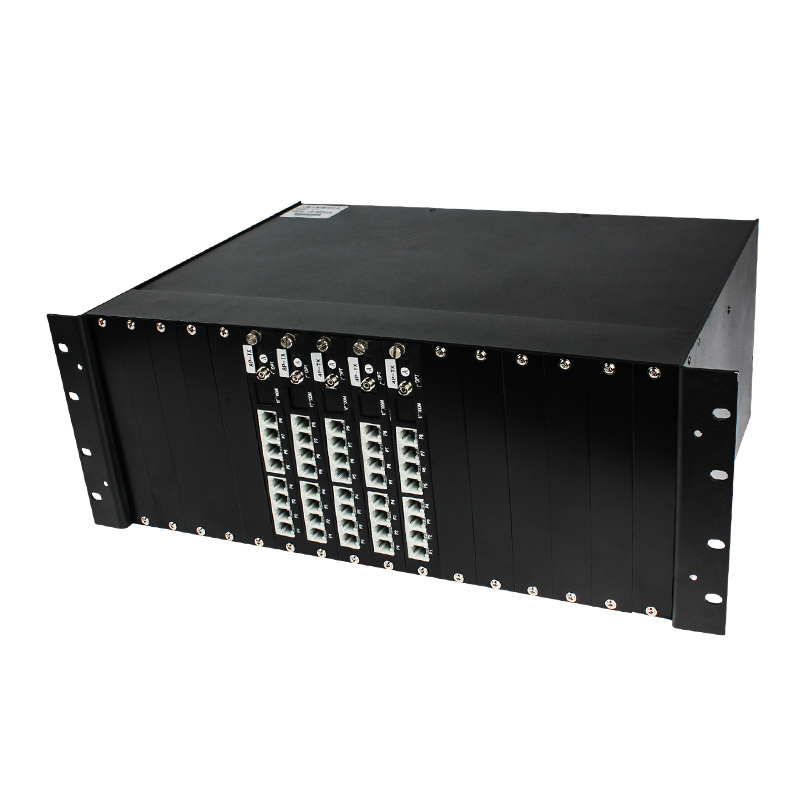

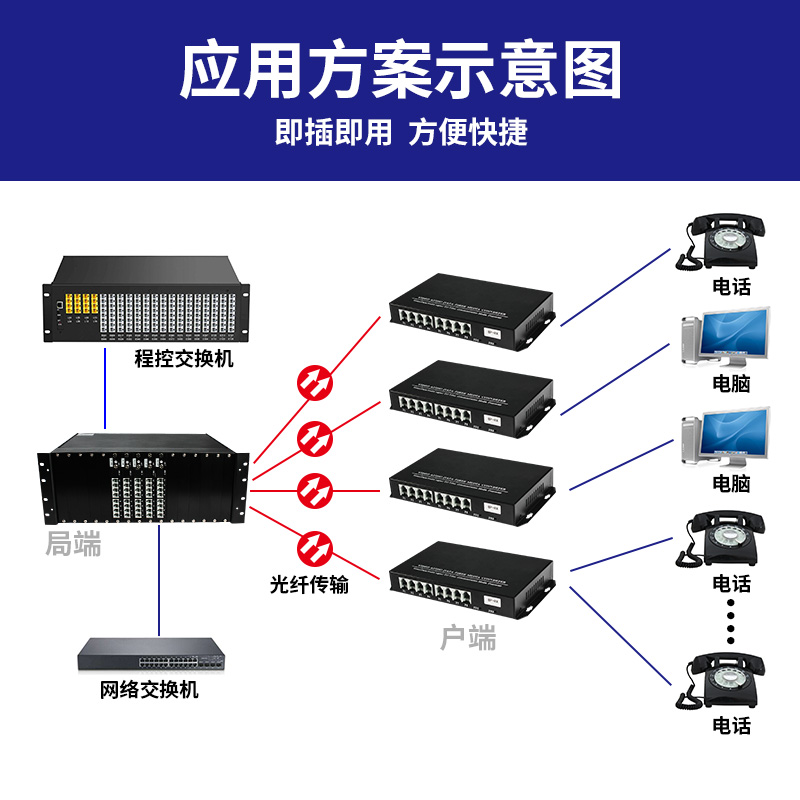

     The integrated rack/frame is an economical standard 19-inch rack that can meet users' centralized use and centralized management. The system has over-temperature, over-voltage and over-current protection devices. The frame can provide dual power supplies with 1+1 backup power supply and centralized SNMP network management.
    Functional Features
    ◆ Standard 19-inch chassis, which can be installed in the server room rack for unified management and maintenance.
    ◆ Modular power supply design, easy maintenance and better shielding.
    ◆ Prevents the electromagnetic signals generated by the power supply from interfering with the normal operation of the module set.

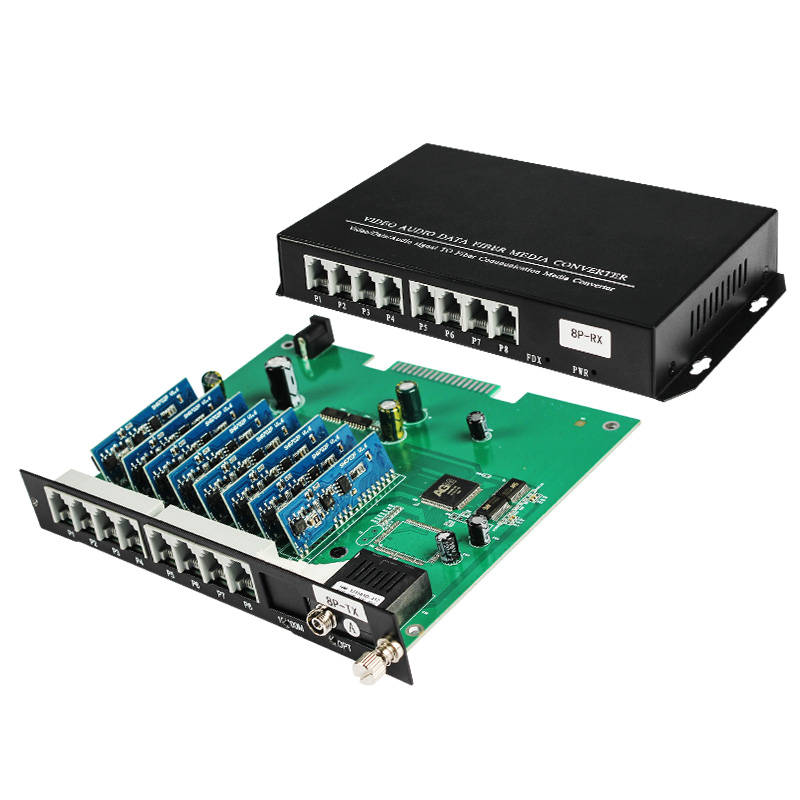

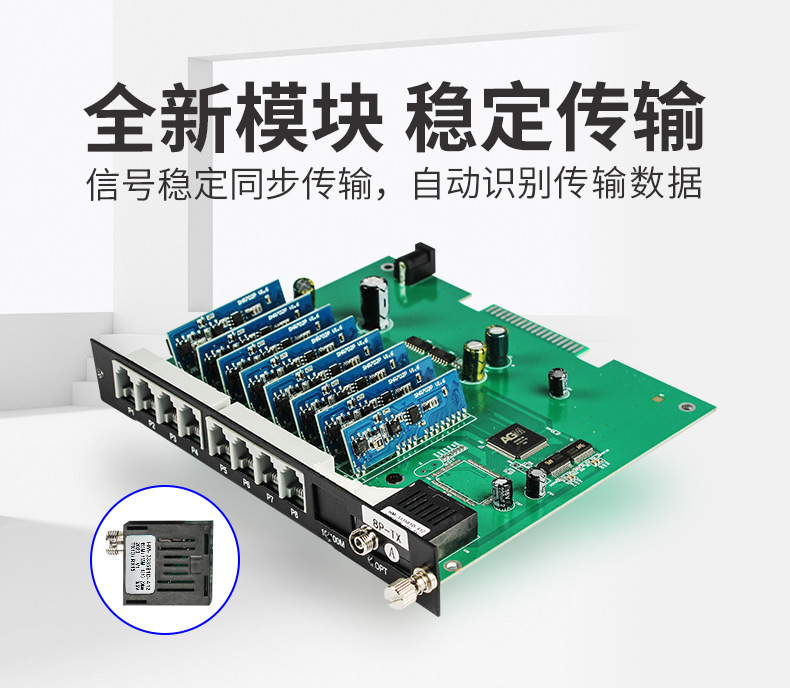

    ◆ The rack can insert multiple telephone optical transceiver boards at the same time, and can mix a variety of boards; supports hot-swapping function.
    ◆ Full compliance with telecom-grade operation requirements, with an average trouble-free working time of more than 100,000 hours.
    ◆ 4U frame is 17 slots plus pluggable dual power supply, can insert 17 pieces of 4U E1 PCM cards and can be SNMP network management cards supported by 1-16 way telephone E1 PCM card; 4 way telephone + 1FE + 2 way serial card; 8 way telephone + 4 way RS232 data card, etc.;
    ◆ 6U frame is 13 slots plus pluggable dual power supply, 13 boards can be inserted with 6U E1 PCM card and can be supported by SNMP network management, such as 30-way telephone E1 PCM multiplexer card; 29-way telephone + 1*FE + 1*serial E1 PCM card;

    Technical parameters
    E1 interface
    Equipment E1 interface are in line with G.703 recommendations
    Speed: n*64Kbps±50ppm
    Code type: HDB3
    Impedance: unbalanced 75Ω/balanced 120Ω (unbalanced with coaxial interface adapter, can be adapted to 75-2/3
    coaxial cable)
    Jitter characteristics: meet G.742, G.823 recommendations
    Input port allowable attenuation: 0~6dBm
    ◆ FXS user phone port
    Ringing voltage: 75V
    Ringing frequency: 25Hz
    Two-wire input impedance: 600Ω (off-hook)
    Return loss: 20dB
    ◆ FXO trunk port
    Ringing detection voltage: 35V
    Ringing detection frequency: 17Hz-60Hz
    Two-wire input impedance: 600Ω (off-hook)
    Return loss: 20 dB
    2 lines input impedance:600Ω(off-hook)
    Return loss:20dB
    ◆ Power requirement
    System power supply: AC180V ~ 260V; DC -48V; DC +24V
    Power consumption: ≤10W
    ◆ Size
    19-inch 6U: 443 (W) X 268 (D) X 271 (H) mm
    19 inch 4U: 443 (W) X 365 (D) X 195 (H) mm
    Working Environment
    Working temperature: -10℃ ~50℃
    Working humidity: 5% ~ 95% (no condensation)
    Storage temperature: -40 ℃ ~ 80 ℃
    Storage humidity: 5% ~ 95% (no condensation)





      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
