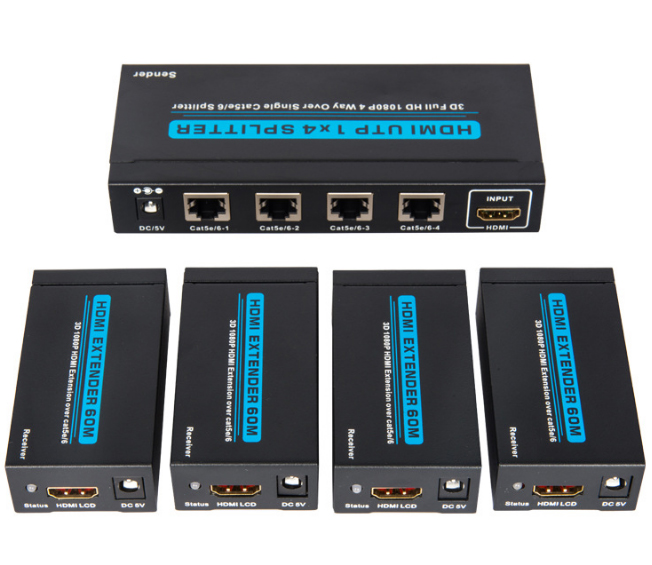

1*4 HDMI Splitter with 60m extender via cat cable

  • transmission length of up to 60m

  • supports HDCP2.2 HDMI input and output signals

  • comprehensive EDID management - Multiple built-in EDID settings

  • Switching memory function&2 switching methods

  •   HDMI  extension for home theaters

  • description

  •  1*4 HDMI Splitter with 60m extender via cat cable

  •  1 x in an 1 x out + 4 x 30m CAT out HDMI 1080p HDMI distributor incl. 4 x HDMI receivers

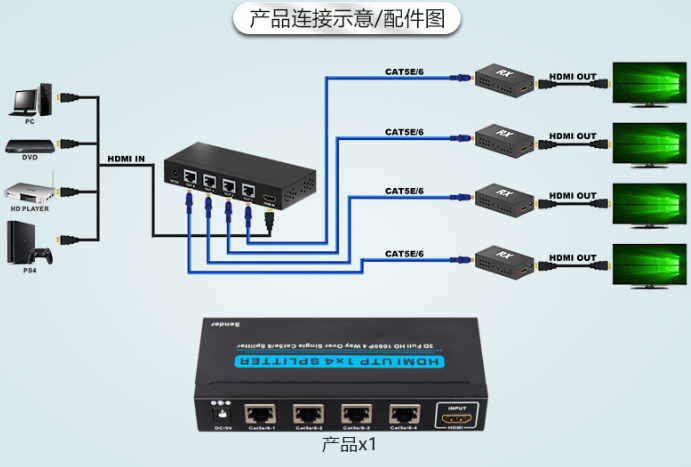

    This extends and distributes the HDMI signal to one local and four remote HDMI monitors or TV's via only one cat5/6 cable each. The four included receivers . The system is expandable by cascading to another to connect one HDMI source to more than 4 monitors. It is suitable for any place where multiple display is required, such as bar, diner, store, church, conference room, school, CCTV, surveillance and so on.

    Extends HDMI signal to 4 remote HDMI monitors or TV's via one CAT cable each.
    HDMI loop output for a local monitor.
    Supports resolutions up to 1080p at 60 Hz.
    HDMI 1.4 compliance.
    Supports AC3, DTS, Dobly TrueHD, DTS-HD over HDMI.





      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
