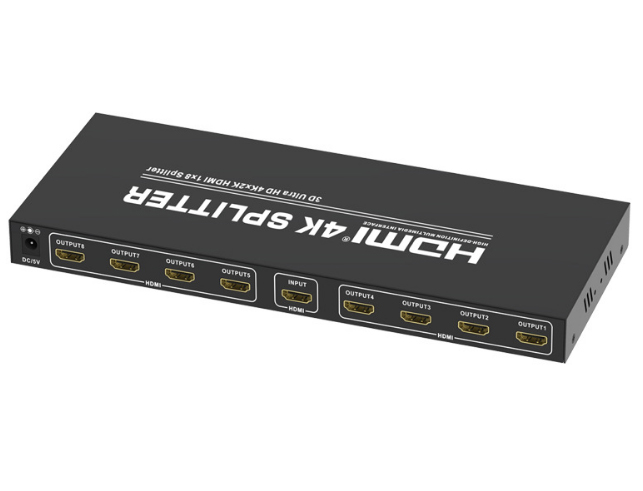

4K@30Hz 1x8 Digitus HDMI1.4 Splitter
HDMI splitter/Switch supports HDMI video resolutions up to 4K @30Hz
-
supports HDCP2.2 HDMI input and output signals
-
comprehensive EDID management - Multiple built-in EDID settings
-
1x28 4K30 HDMI splitter /Switch
-
HDMI extension for home theaters
- description
4K@30Hz 1x8 Digitus HDMI1.4 Splitter

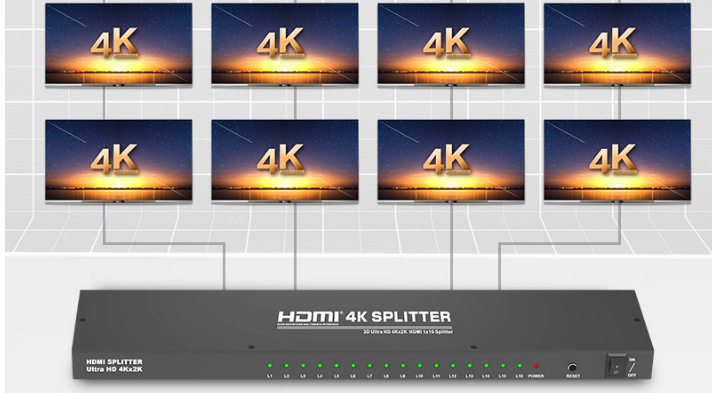

The splitter offers the ideal solution for commercial applications such as video wall presentations or product displays (offices/shops, exhibition stands, store windows, waiting rooms, restaurants, etc).
Technical data
HDMI input: 1
HDMI output: 8
Plug & Play
HDMI version 1.4b
3D & HDCP Support
Resolutions up to max. 2160p/30Hz
Color depth 8/10/12bit
Max. Bandwidth 340MHz
Max. Baud Rate 3.4Gbps
Audio formats DTS-HD/Dolby trueHD /DTS / Dolby-AC3 / DSD
Max. HDMI cable length (input/output): 10 meters without extra amplification
For HDMI cable length > 10 meters please use active HDMI cable or HDMI amplifier
External power supply Input: 100V - 240V AC (50Hz/60Hz)
External power supply output: 5V DC
Max. Power consumption in operation 500mA
Temperature range: -15°C to +55°C
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
