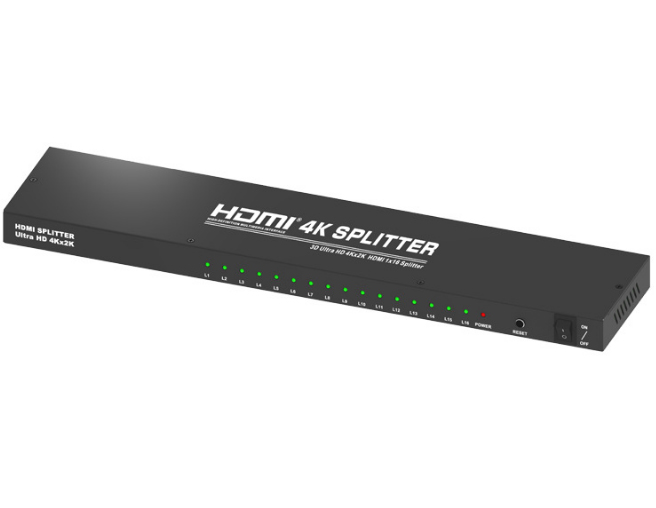

HDMI 1.4 Splitter 1x IN 16 OUT, 4K2K@30Hz

  • HDMI splitter/Switch supports HDMI video resolutions up to 4K @30Hz

  • supports HDCP2.2 HDMI input and output signals

  • comprehensive EDID management - Multiple built-in EDID settings

  • 1x16 4K30 HDMI splitter /Switch

  •   HDMI  extension for home theaters

  • description

  •   HDMI 1.4 Splitter 1x IN 16 OUT, 4K2K@30Hz

  •  Expand your home entertainment system with the 4K2K@30Hz splitter series.

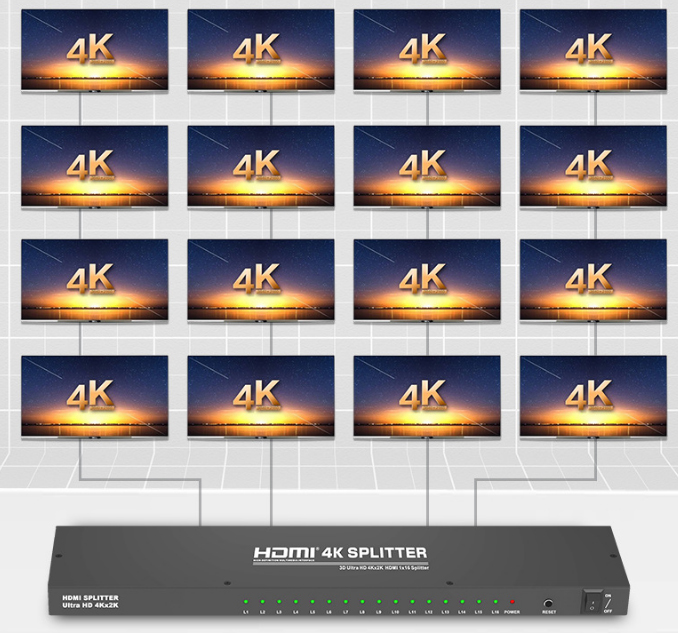

    The 4K2K Splitter offer you the possibility to distribute the signals of one source device
    (e.g. DVD player, etc.) to up to 16 output devices, such as monitors
    or projectors simultaneously in 4K2K. Source devices: e.g., SAT
    Receiver, DVD Player, Blue Ray Player, PC, etc. Output devices: e.g. LCD/
    Plasma TV or a projector. Connect your HDMI devices with
    the high quality 1x16 HDMI splitter and immerse yourself in perfect pictures
    and cinema sound. Experience 3D in all its facets, a 4K resolution and the new
    new integrated color spaces.

    Inputs: 1x HDMI A, 1x DC 12V
    Outputs: 16x HDMI A
    Contact material: gold plated
    Shielding: aluminum housing

    Signal transmission
    Transmission types: video and audio
    Bandwidth up to: 10.2 Gbit/s
    Resolution up to: 4K2K (30 Hz), 1080p (3D)
    Color spaces: Deep Colour, x.v. Colour,
    Audio standards: Dolby Digital/Plus, Dolby TrueHD,
    DTS-HD Master Audio, DVDAudio, SA-CD
    other standards: 4K2K, UHD, 3D, HDCP, CEC, 4K Ultra
    HD (2160i/p), Full HD (1080i/p), HD ready (720i/p), SDTV (480i/p)
    Max cable length: max 10m input / max 10m output
    Supports: Plug and Play , EDID





      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
