2-in/1-out DVI switcher

  • SD/ HD/ 3G SDI extender over fiber optic/ fiber optic cable

  • Supports HDTV resolutions up to 1080p bie 60Hz (Full HD)

  • Fiber optic transmission : 300 m (MM)

  • 10km single mode fiber (SM)

  • HDMI output: 1 x HDMI type A

  • description

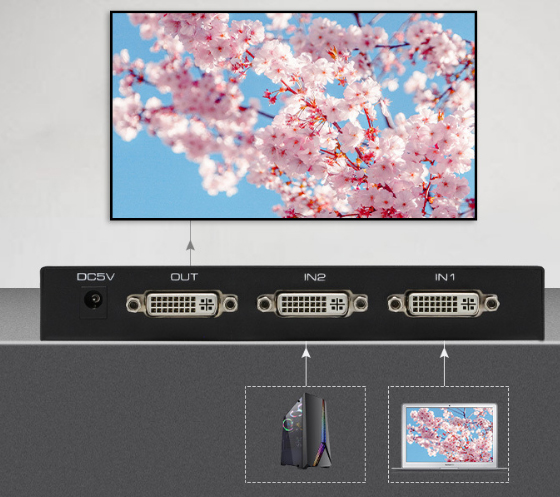

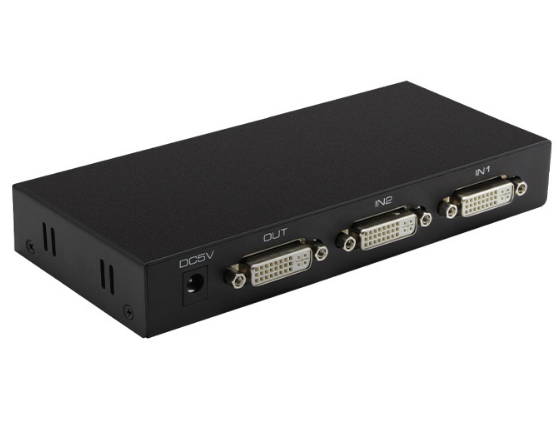

  •   2-in/1-out DVI switcher

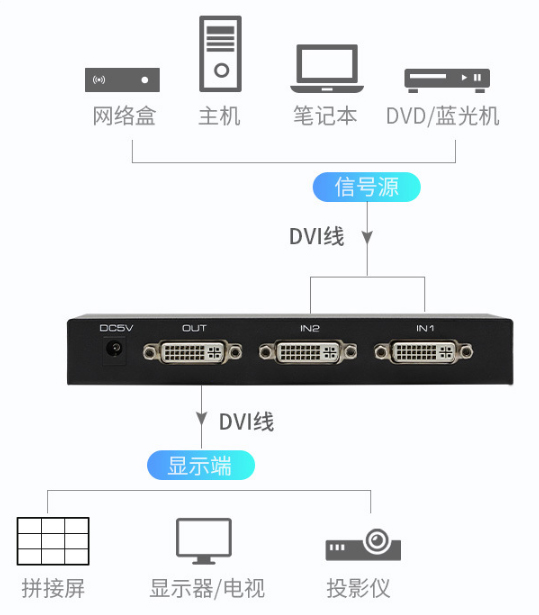

  •   The 2-in/1-out DVI switcher is a digital video switcher with 2-way DVI digital signal input and 1-way DVI output. Support key switch control function. In multimedia applications, a digital display terminal is often required to switch the display screen between multiple DVI signal sources. In DVI 1.0 standard, the highest signal transmission rate up to 4.95Gbps, if for each DVI signal source to configure a display terminal, which not only increases the system cost, but also greatly reduces the reliability of the system.

    Product Features
    Input and Output
    2 DVI inputs, 1 DVI output.
    Self-imposed round-robin function, which can set the round-robin switch, round-robin time and round-robin channel.
    Provide up to 32 user-defined output channel configuration programs, and the program can be stored and called.
    HD resolution
    input and output channels support up to 1080P/60Hz resolution.
    Power-down protection
    with automatic power-down state storage protection, automatic power-on recovery memory function.
    Multiple control modes
    Support panel control, remote control, serial port multiple control modes.







      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
