1 in 2 out DVI Splitter
SD/ HD/ 3G SDI extender over fiber optic/ fiber optic cable
-
Supports HDTV resolutions up to 1080p bie 60Hz (Full HD)
-
Fiber optic transmission : 300 m (MM)
-
10km single mode fiber (SM)
-
HDMI output: 1 x HDMI type A
- description

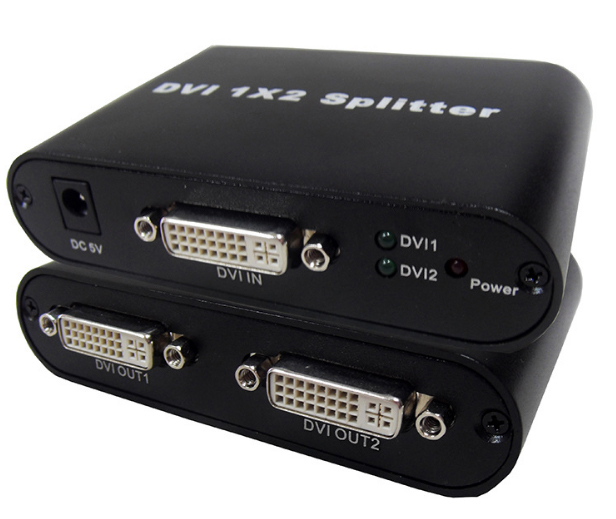

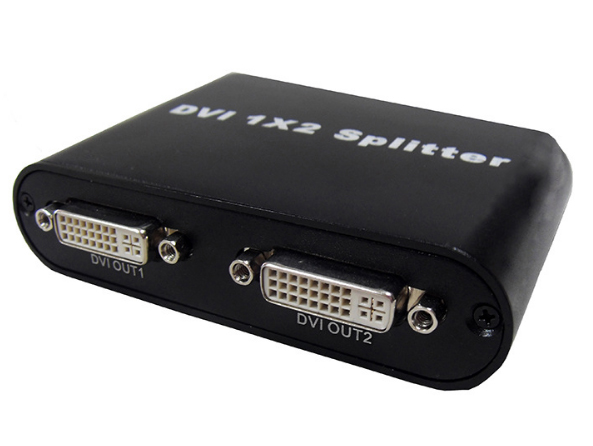

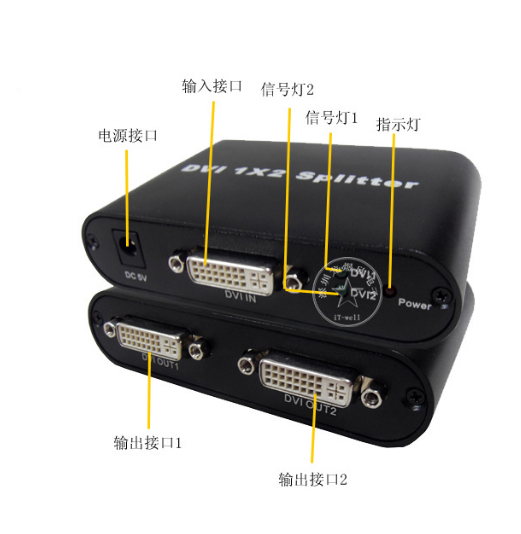

1 in 2 out DVI Splitter
In multimedia application systems, multiple digital display terminals are often required to display the same DVI signal source screen.
If a DVI signal source is configured for each display terminal, this increases the system cost and greatly reduces the reliability of the system.
DVI distributor is designed to solve this kind of engineering problems, DVI distributor supports one DVI signal input and multiple DVI signal output.
DVI signal can support multiple cascade.
From one DVI Input to cascade multiple DVI Outputs
External design, without the system compatibility problems of the internal card type signal
Transmission up to 15M (effective distance)
Suitable for high resolution screens with DVI ports
Supports UXGA with 165MHz bandwidth
Cascadable to increase the number of multiplexed screen display support HDTV HDTV 1920x1200 high resolution
Output resolution support: 1024 x 768 /1280 x 1024/720p/1440 x 900/
1400x1050/1600 x 1200/1680x1050/1080p/1920 x 1200@60Hz
Applications:
Large screen, LED splicing screen, etc., video system, distribution amplification function;
Screen test and burn-in (Monitor testing and burn-in)
Public video system ( securities companies, futures markets, financial securities, etc. )
High-quality multimedia video conference display (Video Conference)
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
