1 in 8 out DVI distributor
SD/ HD/ 3G SDI extender over fiber optic/ fiber optic cable
-
Supports HDTV resolutions up to 1080p bie 60Hz (Full HD)
-
Fiber optic transmission : 300 m (MM)
-
10km single mode fiber (SM)
-
HDMI output: 1 x HDMI type A
- description

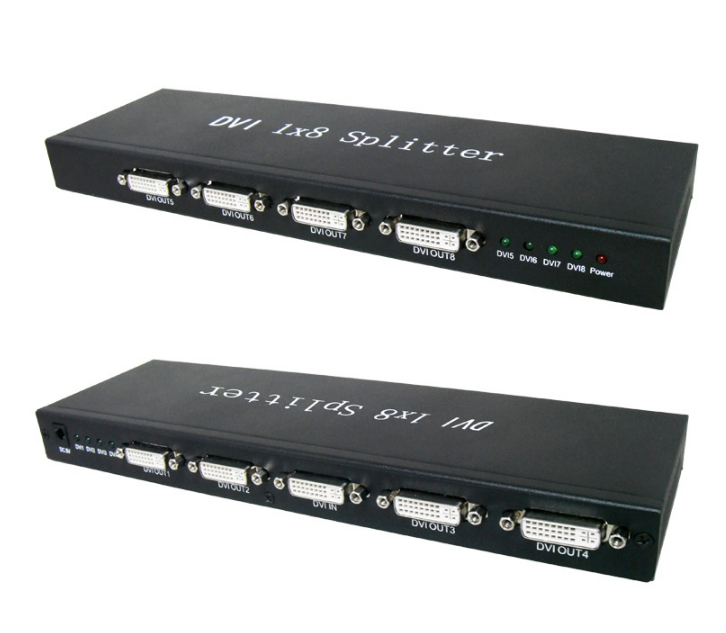

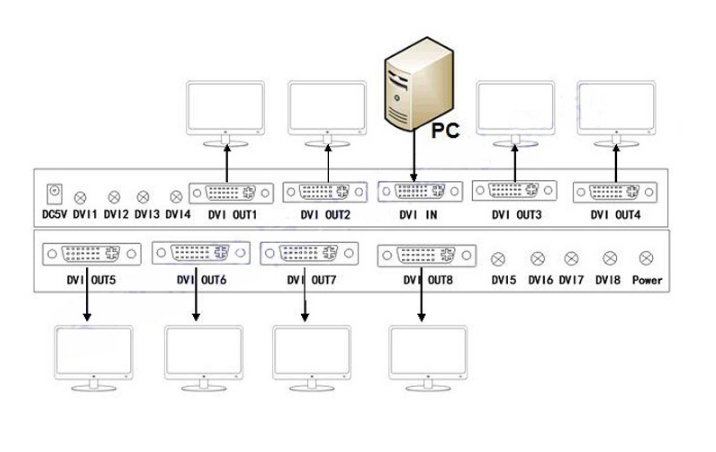

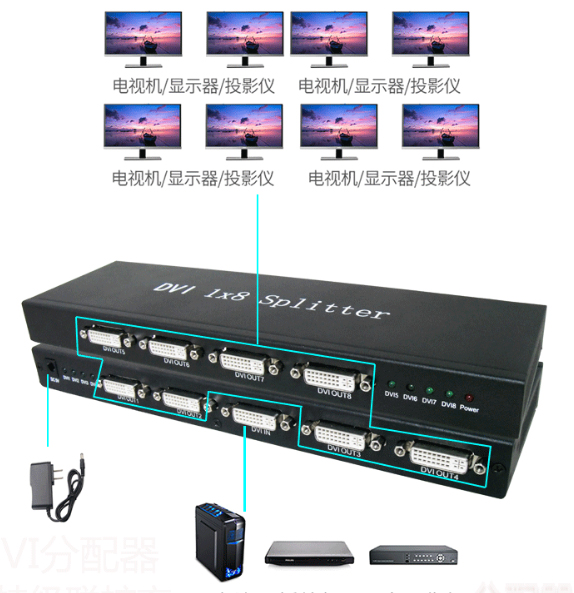

1 in 8 out DVI distributor
Support copy EDID (send command via RS232), support HDMI 1.4 standard, support 3840*2160/30HZ video signal, DVI 2.0 standard; using high bandwidth chip, high performance image processing and signal long moment away from the transmission distortion gain compensation technology; using digital synchronous identification processing technology, image output more stable and reliable; full SMD SMD process, the Special ESD electrostatic protection technology; support signal timing reformation, DVI distributor perfect display 4K * 2K, 1080P resolution; 48-way DVI distributor effective shielding interference signal for harsh field installation environment; simple installation, plug and play.
1 minute 8DVI distributor parameters
Connector: DVI-I universal socket female
Signal transmission: DVI-D signal
Support resolution: 4K×2K, 1920×1080p
EDID management: support copy display device EDID
Support standard: HDMI 1.4, HDCP 1.4, DVI 2.0 standard
Transmission distance: 4K * 2K resolution: the national standard cable transmission distance input 20 meters, output 20 meters
Transmission distance: 1920 * 1080P resolution: the national standard cable transmission distance input 30 meters, output 30 meters
Differential pair impedance: 100Ω
Differential transceiver swing: ±400mV
Differential signal type: TMDS
Power supply format: AC100 ~ 220V, 50/60Hz
Operating temperature range: -20to+55℃
Operating humidity range: 5to90%RH (no freezing)
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
