4x4 DVI Matrix

  • SD/ HD/ 3G SDI extender over fiber optic/ fiber optic cable

  • Supports HDTV resolutions up to 1080p bie 60Hz (Full HD)

  • Fiber optic transmission : 300 m (MM)

  • 10km single mode fiber (SM)

  • HDMI output: 1 x HDMI type A

  • description

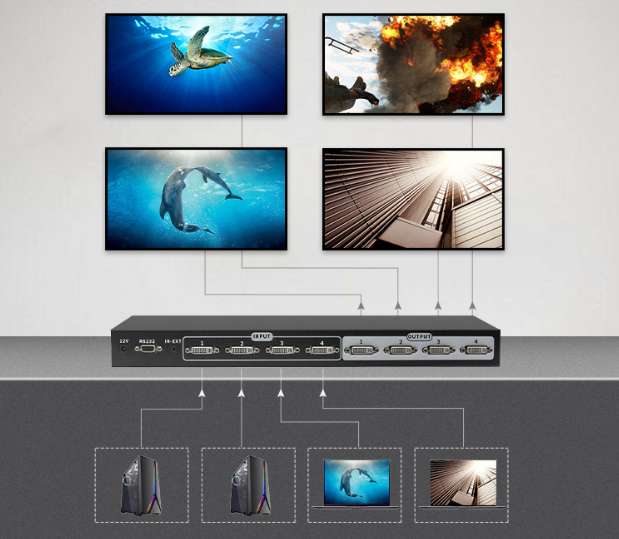

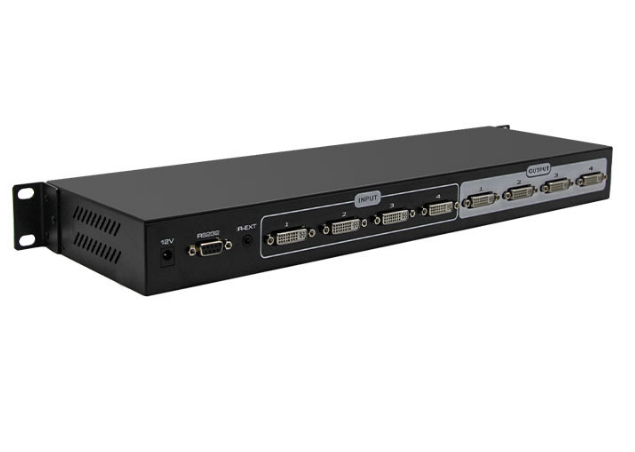

  •  4x4 DVI Matrix

  •    4-channel dvi matrix, support button, infrared and rs232 switching operation, with 4-channel video input port and 16-channel video output port, with large capacity input and output capacity, support any input set to the default edid and edid learning parameters. Its unique board plug-in card design, so that you have more flexibility in the use of engineering. gf-dvi0404 using the new dvi full digital interface, so that the image signal can be high-fidelity output, the picture is clearer

    Product Features:

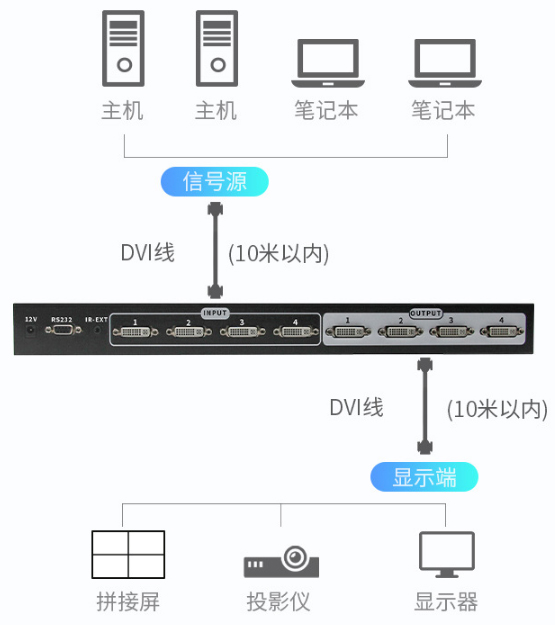

    - Support 2~4 channel dvi signal input, 2~4 channel dvi signal output.
    - Support accurate adaptive compensation at the input, extending the large input distance to 36 meters.
    - Interface bandwidth 1.65gbps,video bandwidth 165mhz,perfect support 1920*1200@60 resolution.
    - Adopting high-speed digital switching technology, perfectly solving crosstalk, ghosting and trailing phenomenon. Real reproduction of the video effect of the input signal.
    - Domestic integration of such a multi-channel dvi signal exchange matrix equipment, to adapt to the needs of the times of large-scale application of dvi signal.
    - Support for fast switching operation.
    - Support video signal type: dvi1.0 specification in dvi-d full digital signal.
    - Video signal input and output with a fully digital dvi-d interface.
    - With power-down memory function with power-off site protection and other functions.
    - With infrared remote control function and rs-232 communication function.
    - Adopt programmable logic display circuit, any interactive switching.
    - Signal long-distance transmission distortion compensation technology.
    - Support input signal status monitoring, can real-time monitoring and display whether the current input channels are valid signal access.
    - Support load access status monitoring, can real-time monitor and display whether the output channel is connected with load.







      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
