1 in 4 out DVI Splitter
SD/ HD/ 3G SDI extender over fiber optic/ fiber optic cable
-
Supports HDTV resolutions up to 1080p bie 60Hz (Full HD)
-
Fiber optic transmission : 300 m (MM)
-
10km single mode fiber (SM)
-
HDMI output: 1 x HDMI type A
- description

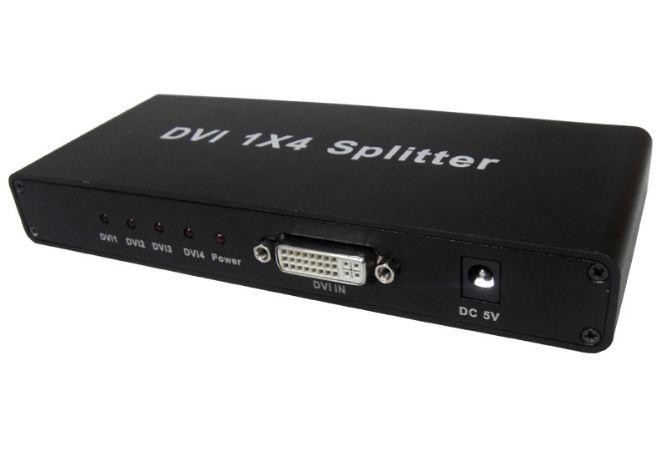

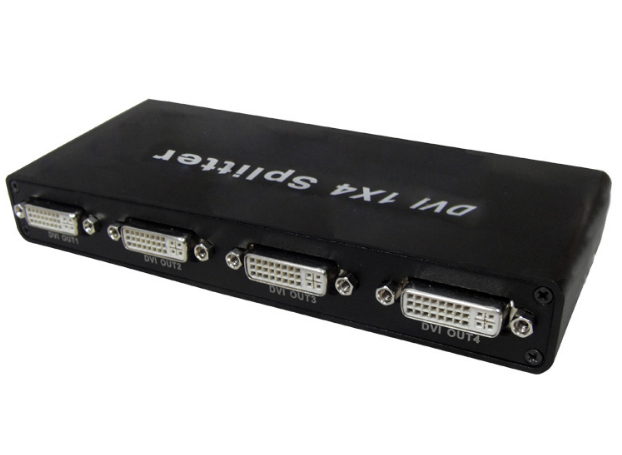

1 in 4 out DVI Splitter
Product Features

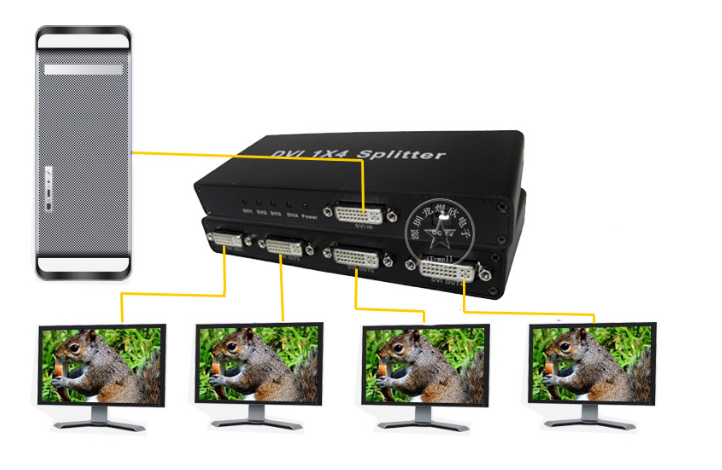

●From one DVI input to 4 DVI outputs
External design, without the system compatibility problem of internal card type
●Signal transmission up to 10 meters (effective distance)
High resolution screen with DVI port
Supports UXCA with 165MHz bandwidth
●Can be expanded in series to increase the number of screen displays
Support HDTV high definition TV 1080P high resolution
1. Strong compatibility, support various output devices on the market
Compatible with all DVI digital devices on the market today, including computers, set-top boxes, hard disk recorders, etc. After the distribution of support for a variety of DVI monitors, including televisions, projectors, monitors, etc.
2. DVI digital transmission fast
DVI transmission is a digital signal, digital image information does not need to go through any conversion, it will be transmitted directly to the display device, so it is faster, effectively eliminate the drag phenomenon, and the use of DVI for data transmission, the signal is not attenuated, the color is more pure, more realistic.
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
