1-in/8-out SPLITTER ,bandwidth 500MHZ

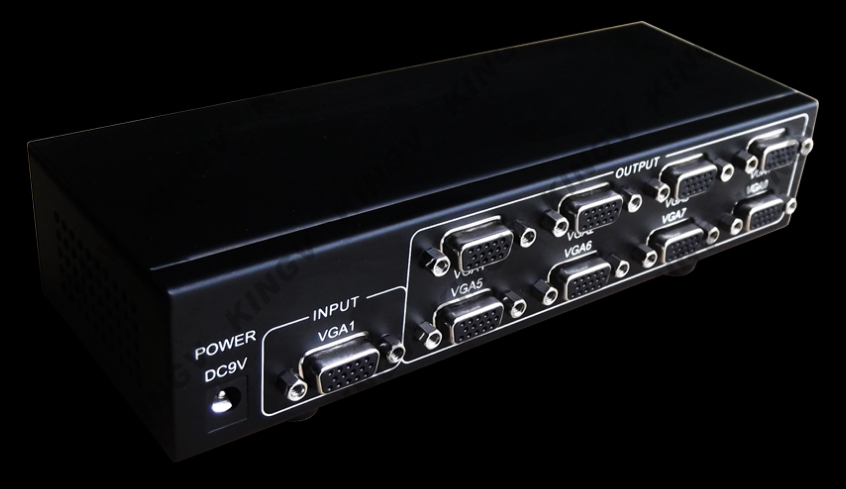

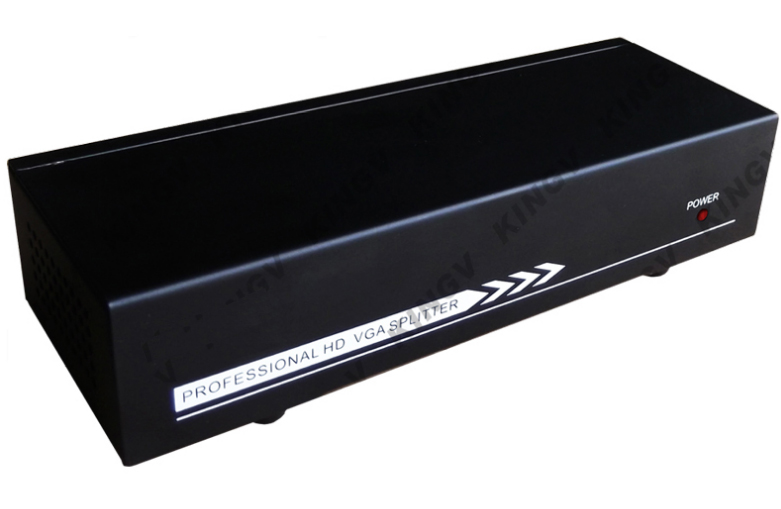

VGA distributor series is specially designed to display signals for computer and video equipment as well as high-resolution VGA digital image signal display distribution equipment. This series of products can be widely used in large screen projection display project, multimedia teaching, report hall, command and control center, hotel, multimedia conference room, audio and video showroom and other occasions.

Features: VGA distributor 1 in 8 out

1. 1-channel VGA computer signal input; 8-channel VGA computer signal output, 8-channel signals are the same.
2、Adopt 500M high bandwidth chip with long line drive function.
3. independent development of high-resolution display design circuit
4. using signal long distance transmission distortion gain compensation technology, transmission distance of 80 meters.
5 computer video input and output using HD15PIN (VGA) interface.

Main technical index parameters.

1. bandwidth: 350MHz and 500MHz two optional
2. Brightness and chromaticity interference: -50dB@10MHz
3. Signal type: digital VGA, digital TMDS
4. Differential phase I/0S: <1.28 degrees, 3.58MHz
5. Differential gain error: 0.1%, 3.58-4.43MHz
6. Isolation (crosstalk): <-85db (10MHz)
7. Signal-to-noise ratio: 100dB
8. Input signal level: 1.2 volts p-p, 5 volts p-p (TTL)
9. Non-linear distortion: <0.02%/0.02o (RL=150Ω)
10. Support resolution: HD 1920 X 1200 (60Hz)
11 Input and output interfaces: HD15PIN (VGA)
12. Input level: 0.7Vp-p
13 Input resistance: 75Ω
14 Output resistance: 75Ω

SPECIFICATIONS:

OperatingTemperatureRange	-5 to +35℃(+23 to +95℉)
OperatingHumidityRange	5 to 90%RH (No Condensation)
Video Input(Transmitter)	1xHDMI Type A, 19-pin, female
Video Output(Receiver)	1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)	1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required^①	SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format	4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format	Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input	HDCP 2.2, HDCP 1.4
HDCP Output	HDCP 1.4
Power consumption	Transmitter: 3watts(Maximum) Receive: 3watts(Maximum)
Dimension (L×W×H)	Transmitter: 9610025mm Receive: 9610025mm
Net Weight	475g(Pair)
