1-in/16-out SPLITTER ,bandwidth 500MHZ

  • SD/ HD/ 3G SDI extender over fiber optic/ fiber optic cable

  • Supports HDTV resolutions up to 1080p bie 60Hz (Full HD)

  • Fiber optic transmission : 300 m (MM)

  • 10km single mode fiber (SM)

  • HDMI output: 1 x HDMI type A

  • description

  •    1-in/16-out SPLITTER ,bandwidth 500MHZ

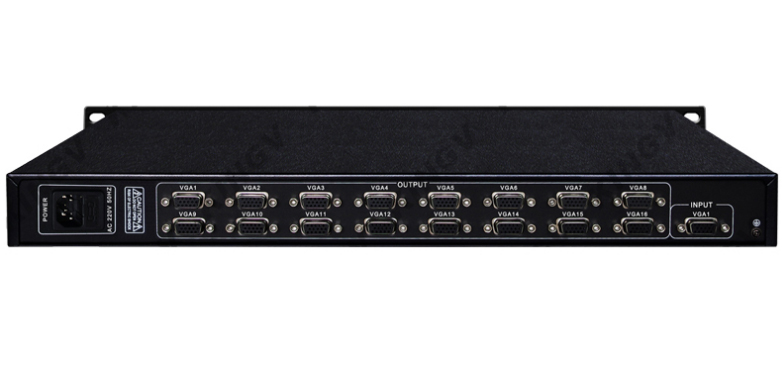

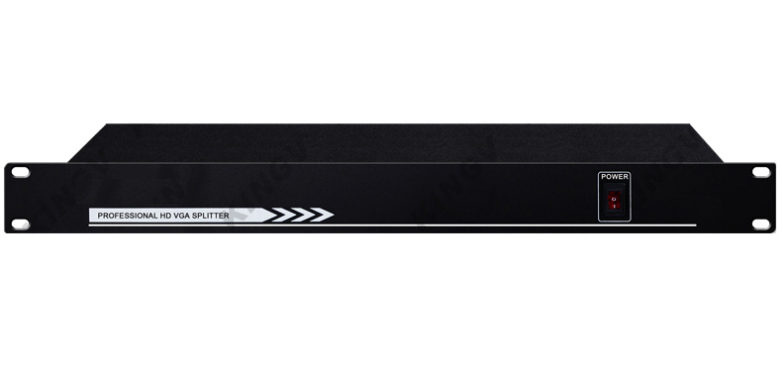

  • The 1-in-16 VGA video splitter is a high-performance device specially designed for the display distribution of computer signals. Adopting VGA15HDF input and output terminals, the internal circuitry adopts a typical current-type amplification mode different from the traditional one, with its own buffer, making the output more stable and the image clear without ghosting, minimizing the signal transmission attenuation and ensuring the image signal can be output with high fidelity. Embedded intelligent control allows multiple distributors to be used in cascade to expand multiple ports. The series of products are mainly used in broadcasting and television projects, multimedia conference halls, large screen display projects, television teaching, command and control centers and other places.

    -With good performance of broadband, high speed, high precision, high output current, low noise, low power consumption.
    -The circuit adopts the typical current-type amplification mode which is different from the traditional one.
    -Supporting DDC2 standard.
    -Physical resolution up to 1920*1440 pixels.
    -Using a dedicated driver chip to support long line transmission.
    -Wide voltage input, with direct AC80 - 260V AC input for the adapter.
    -System power consumption less than 2 watts.
    -Bandwidth 500-600 MHz (-3 dB) full load.

    Technical parameters
      Bandwidth 500Mhz(-3db) full load
      Brightness interference -55dB@5Mhz
      Differential phase 0.05o(RL=150Ω)
      Differential gain 0.05%(RL=150Ω)
      Maximum propagation delay 5ns(±1)
      Switching speed ≤180ns

    Signal input -------
      Signal type VGA-UXGA video signal
      Interface VGA15HDF interface
      Minimum level 0.5Vp-p
      Maximum level 1.0Vp-p
      Impedance 75Ω
      Return loss -30db@5MHz

    Signal output -------
      Signal type VGA-UXGA video signal
      Interface VGA15HDF Interface
      Output level 0.7Vp-p
      Impedance 75Ω
      Return loss -30db@5MHz
      DC compensation max. 5mV

      Input/output signal type TTL
      Input level 0V-5.0Vp-p:4.0V
      Output level 5Vp-p
      Input impedance 510 Ω
      Output impedance 75 Ω
      Polarity positive or negative (identical to input)







      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
