3*3 Hdmi Splicing processor

  • Switches between 4 HDMI sources and 2 HDMI displays

  • Supports resolutions up to 4K 60Hz and HDR signals

  • Extract audio from HDMI signal to optical port or 3.5mm audio output

  • EDID management system to monitor

  • HDCP 2.2 support

  • description

  •    3*3 Hdmi Splicing processor

    -Made of metal material, anti-interference, corrosion resistance, easy heat dissipation and long service life.
    This 2X2 splitter supports 1 HDMI start and 4 HDMI end.The main function is to split the HDMI which is the HD signal into 4 blocks, and to adopt the signal into 4 video display units (such as the rear proc- tion unit, the LCD.), complete the whole picture of a large size.
    Support HDMI1.3 input, support 4 HDMI output.Support 1920 x 1080P 24/30/50/60Hz and below input.Support HD resolution of 1920 x 1080P at 60Hz.
    Gold plated interface effectively reduces data transmission loss and improves signal transmission efficiency. Supports a variety of stitching, plug-and-play and easy-to-use functions.Supports splicing 2X1/3X1/4X1/1X2/1X3/1X4/2X2.
    It is powered by 12V and has overcurrent protection for stable performance.

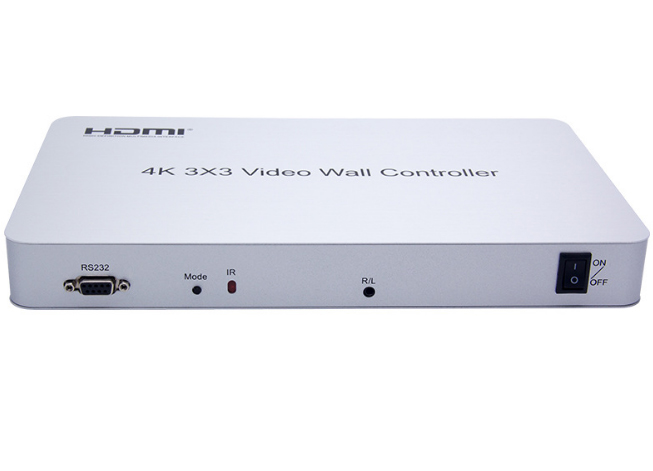

    Element type: LED video wall controller.
    Material: Iron shell
    Package size: Approx.24.50 x 17.40 x 5.80 cm/9.6 x 6.9 x 2.3 in.
    Power supply: 12V/1A
    HDMI: 1.3
    Resolution: 1920 x 1080P at 60 Hz
    Input distance: ≤ 5 meters
    Output distance: ≤ 10 meters/33ft





      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
