3*3 Hdmi Splicing processor with USB

  • Switches between 4 HDMI sources and 2 HDMI displays

  • Supports resolutions up to 4K 60Hz and HDR signals

  • Extract audio from HDMI signal to optical port or 3.5mm audio output

  • EDID management system to monitor

  • HDCP 2.2 support

  • description

  •    3*3 Hdmi Splicing processor with USB

    -This 3X3 splicer supports one HDMI input, 9 HDMI output, can be a high-definition video signal to nine video displays (such as LCD TV, cast back unit, etc.), forming a complete high-definition video splicing wall, pure hardware design, connect the line that is used, a variety of splicing, more can be completed 4X4 and other splicing mode.

    【2×2-Video Wall】: This 2X2 splicer supports 1 HDMI input and 4 HDMI outputs.The main function is to split a complete HDMI HD image signal into 4 parts and assign them to 4 video display units (such as rear projection unit) , LCD TV etc.), complete a 4-channel HDMI dynamic large screen.
    【High Efficiency HD Transmission】: The gold-plated interface effectively reduces data transmission loss and improves signal transmission efficiency. Supports 1920 x 1080P 24/30/50/60 Hz and below HD output. It runs on 12V and has overcurrent protection to ensure stable performance.
    【High Quality Materials】: Made of metal materials, anti-interference, corrosion resistance, easy heat dissipation and long service life. It is powered by 12V and has overcurrent protection to ensure stable performance.

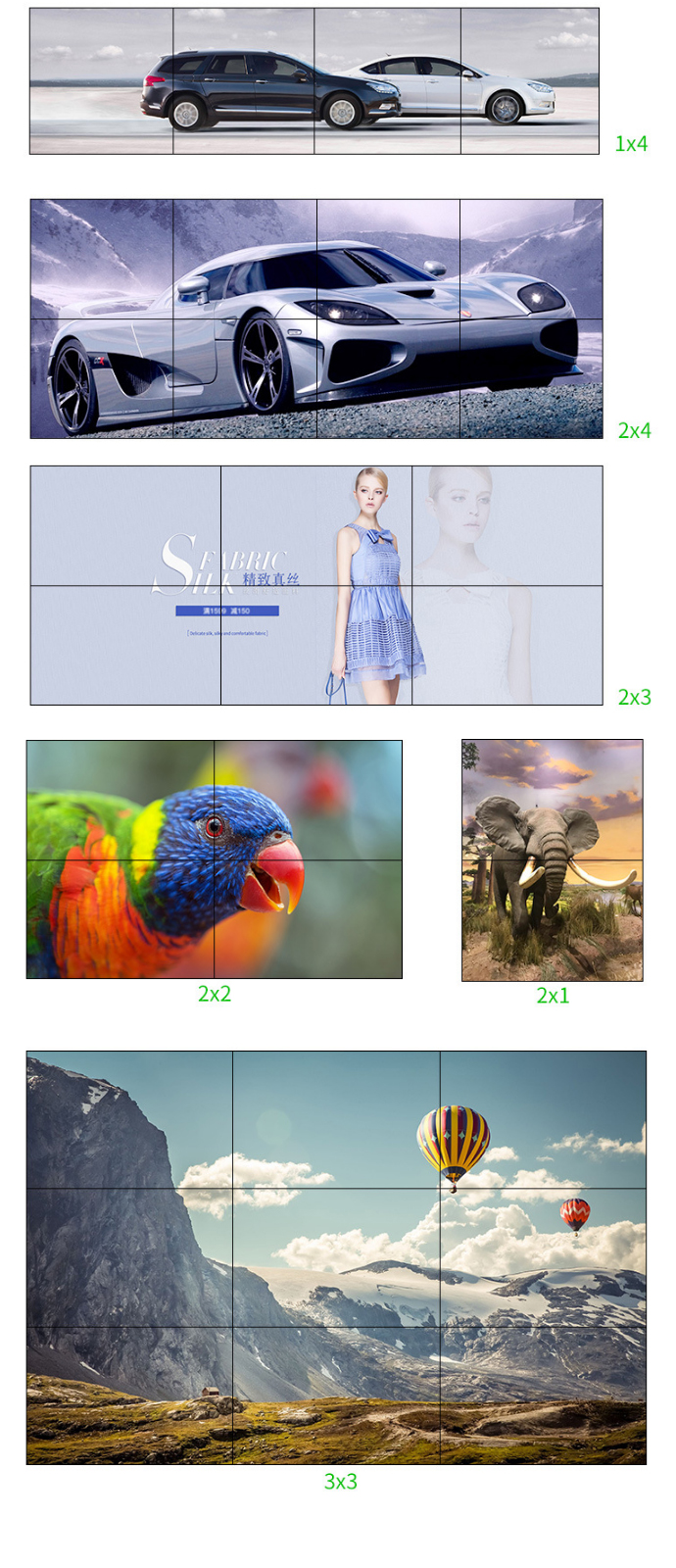

    【Plug and Play】: Supports multiple splicing, plug and play, easy to operate. Supports splicing 2X1/ 3X1/ 4X1/ 1X2/ 1X3/ 1X4/2X2.
    【After-Sales Warranty】: Professional quality guarantee. If you encounter any problems after purchase, please contact us in time. The professional customer service team will serve you wholeheartedly. Thank you for buying from us.






      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
