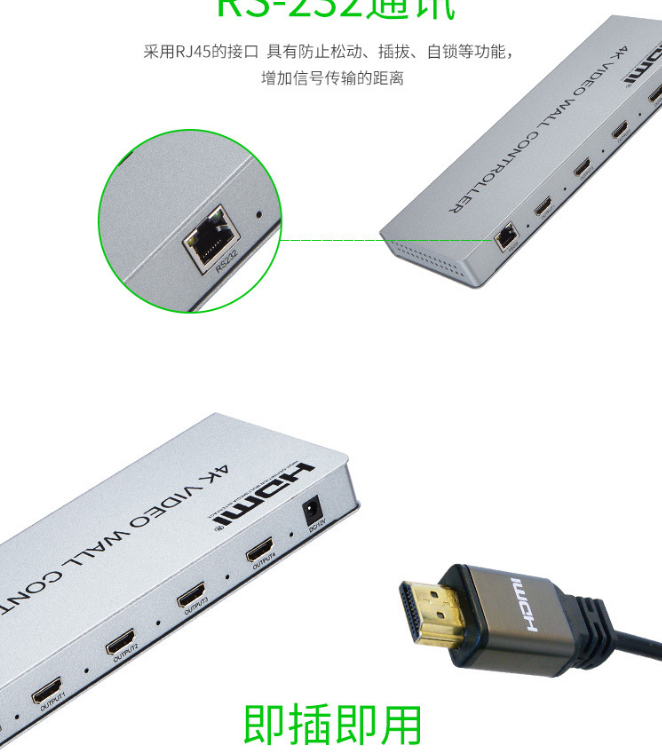

2X2 HD signal HDMI video splicer
Switches between 4 HDMI sources and 2 HDMI displays
-
Supports resolutions up to 4K 60Hz and HDR signals
-
Extract audio from HDMI signal to optical port or 3.5mm audio output
-
EDID management system to monitor
-
HDCP 2.2 support
- description
2X2 HD signal HDMI video splicer
-This 3X3 splicer su.
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
