VGA Fiber Optic Extender with audio ,rs232 loop out 1920x1200@60Hz , single fiber LC.
VGA loop output on transmitter
-
Supports computer resolutions up to 1920x1080
-
Plug-and-play functionality - no software required
-
10km single mode fiber (SM)
-
Supports stereo speakers
- description

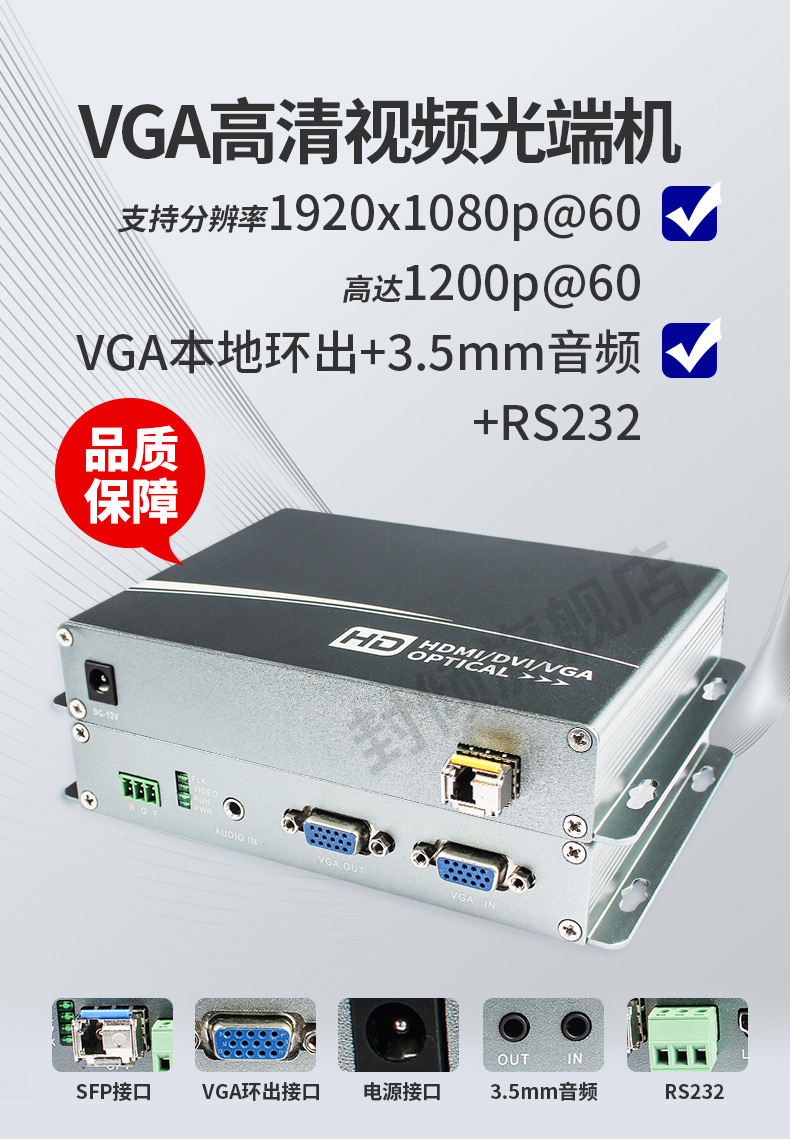

VGA Fiber Optic Extender with audio ,rs232 loop out 1920x1200@60Hz , single fiber LC
VGA loop output on transmitter
Supports computer resolutions up to 1920x1080
Supports stereo speakers
Plug-and-play functionality - no software required
Low RFI / EMI for sensitive applications
VGA and stereo audio fiber optic extender over singlemode/multimode LC fiber optic cable
Can also be used as a stereo audio-only extender
it is a fiber optic VGA + audio extender with VGA loop output that extends high-resolution VGA and stereo audio as well as RS232 signals - up to 10km - over a fiber optic cable.

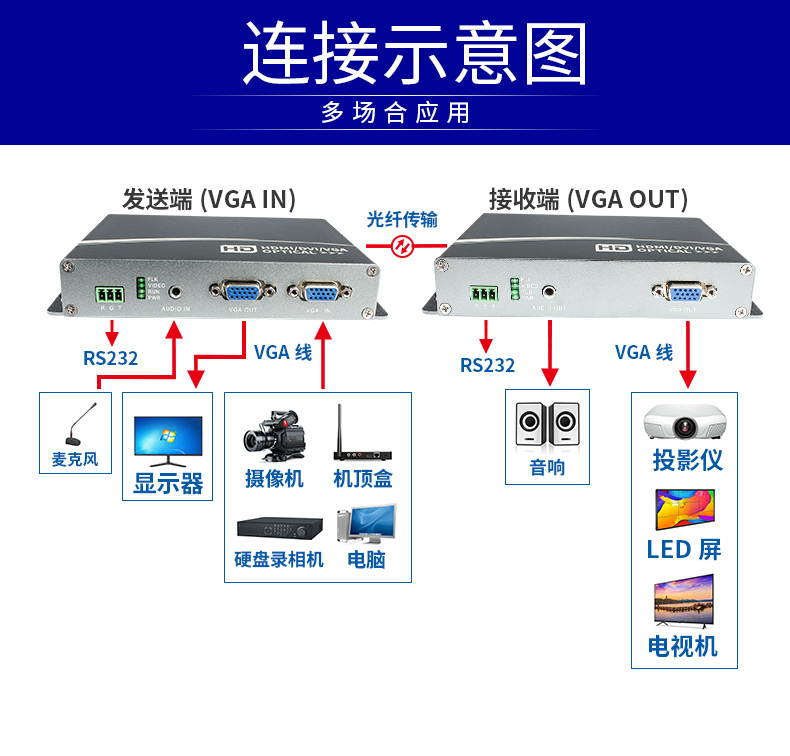

The VGA fiber optic extension set consisting of a local and a remote unit allows you to use a VGA display and stereo speakers up to 10km away from a computer and ,thanks to the VGA loop output on the local unit, simultaneously output the VGA video signal on a VGA display locally. The connection between the transmitter, which is connected to a computer, and the receiver, which is connected to a monitor, is realized via a single LC single-mode fiber optic strand (up to 10km) or via a multimode fiber optic cable (up to 500m).
Features
Signal transmission over single-strand LC fiber optic cable - no RF interference
Use a 9 micron singlemode cable and extend the range of VGA, audio and RS232 signals to 10 kilometers
Use 50-micron or 62.5-micron multimode cable and extend the range of VGA, audio, and RS232 signals up to 500 meters
VGA loop output: Supports local VGA monitors
Supports VGA computer resolutions up to 1920x1080
Supports stereo speakers
Can also be used as an audio-only extender
Plug-and-play functionality - no software required
Low RFI/EMI for sensitive applications
Integrated standard EDID table
Supports DDC2B protocol
Cables can be installed very easily in a cable duct before installing the extender
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
-
