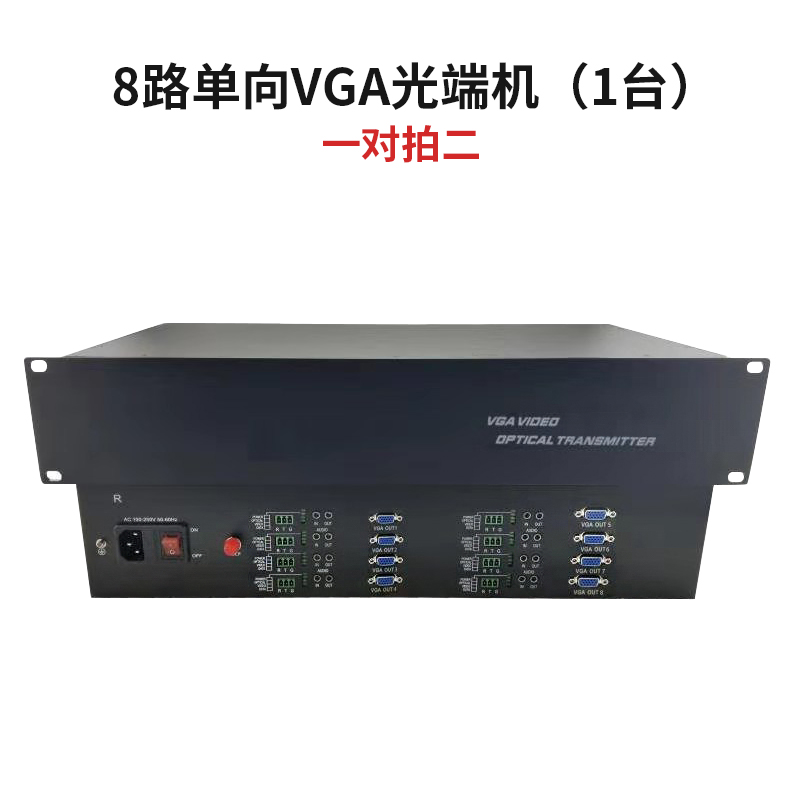

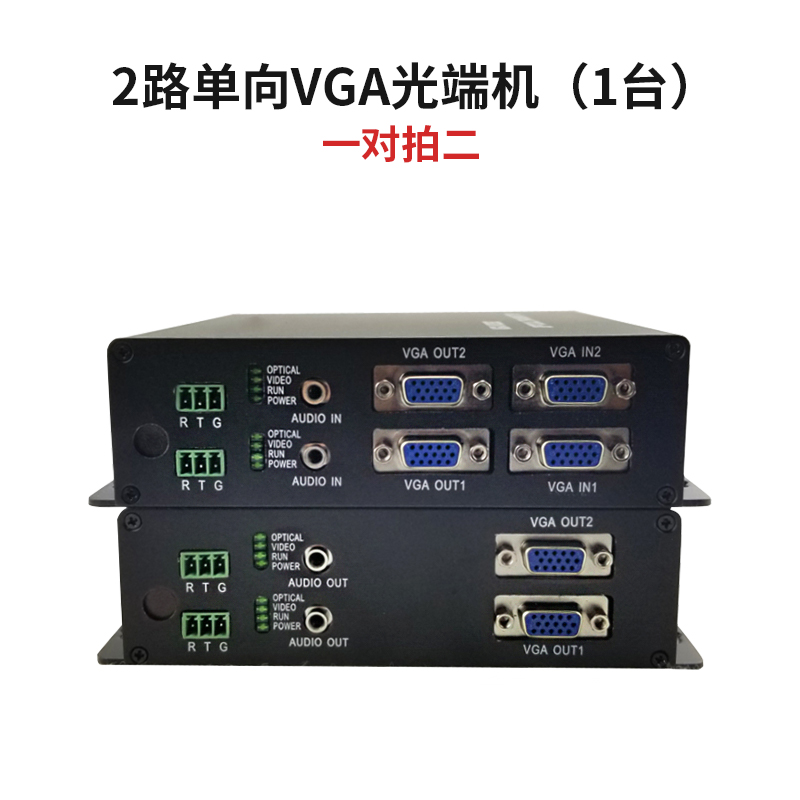

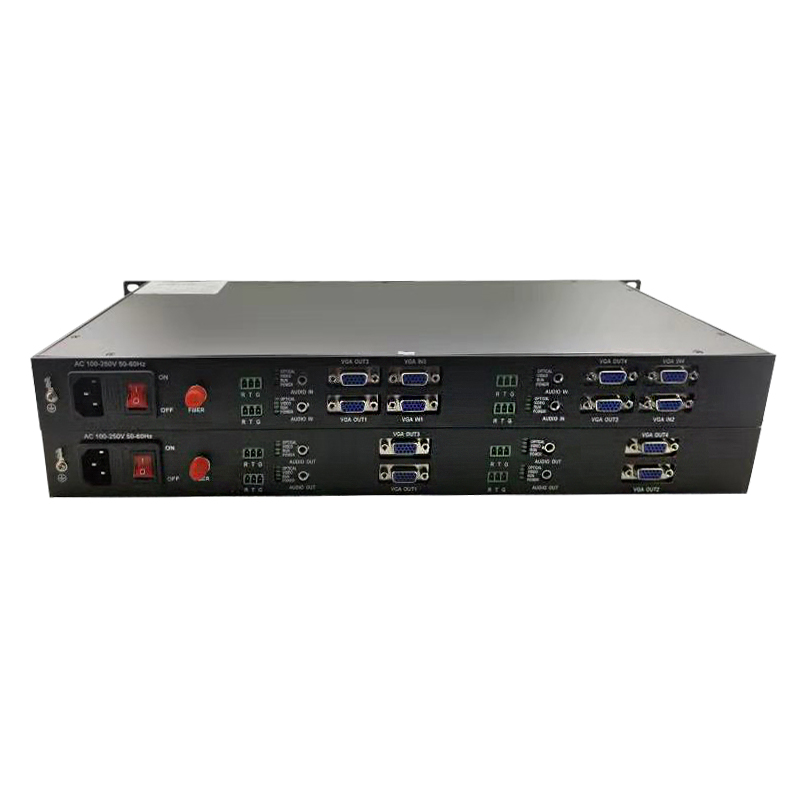

Uncompressed 2/4/8/16 channel VGA Fiber Optic Extender with usb KVM ,3.5mm audio,bilateral rs232, Loop out ,single fiber ,LC
VGA loop output on transmitter
-
Supports computer resolutions up to 1920x1080
-
Plug-and-play functionality - no software required
-
10km single mode fiber (SM)
-
Supports stereo speakers
- description
Uncompressed 2/4/8/16 channel VGA Fiber Optic Extender with usb KVM ,3.5mm audio,bilateral rs232, Loop out ,single fiber ,LC
Extender of VGA signal, keyboard and mouse up to 20km using 1 optical cable.
Supports USB keyboard and mouse, 3.5 audio
Fiber Optic Extender provides long distance extension of VGA signals over a single fiber optic cable, it supports high resolution up to 1080P, KVM, locally produced transmitter, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission with high quality resolution due to its good stability and powerful worldwide security.
Features
Transmits VGA video signals up to 10km on a single optical fiber cable;
Support video resolution up to 1920*1080P @ 60Hz;
Supports keyboard and mouse signal transmission;
Support External stereo audio unidirectional transmission;;
Support transmitter single channel signal;
Support RS232 signal unidirectional transmission; Transmission speed self-adapting;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, makes the image smooth, clear and stable;
Built-in electrostatic discharge protection system;
Easy installation, plug and play;
Application
Signage digital
LED street and stadium signs
Medical Equipment
Aircraft On Board Video System
Conference room video equipment
Remote monitor for paint for road, industrial, military control
LCD display, projector, plasma display connection
Large video supporting wall system
TV Broadcasting Station
Home Theater
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
-
